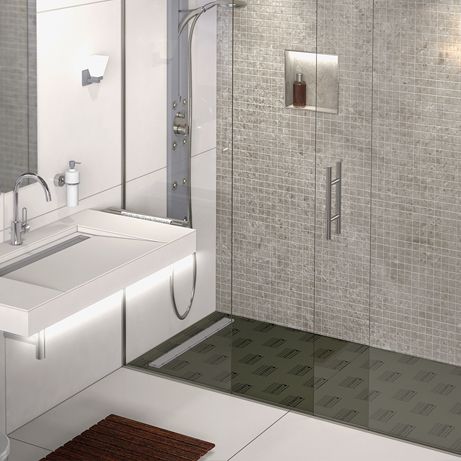

Flush with the floor shower bases with separate drainage technology for the substitution of bath tubs – TUB-LINE BOL

Showers are in line with the trend. More often they are preferred to bath tubs. This has not only optical but also economical, practical and health-oriented reasons.

LUX ELEMENTS®-TUB-LINE BOL
Standard-compliant sealing for highly stressed areas according to DIN 18534, Part 6



no-img

TUB-LINE BOL 1800/900
Shower base element with floor channel drain

no-img

TUB-UBOL 1800/900
Substrate element





See also:
TUB-LINE H BOL
Variants with point drainage:
TUB-BOL
TUB-H BOL
TUB-COMBI BOL

  • Shower base element with integrated and sealed floor channel drain (70 x 650 mm, 70 x 750 mm or 70 x 850 mm)
  • Reversible channel cover rail offers two design options
  • Factory sealing
  • Prefabricated gradient (four-sided)
  • Shower base height: 30/45 mm
  • Clean tiling with tiling aid
  • Height-adjustable for optimum adaptation to covering thickness
  • Can be shortened in length through area without gradient
  • For barrier-free construction
  • Second drainage level
  • Matching substrate elements with a height of 55 mm,
  • Secure click system for fastening the drain connection fitting
  • Suitable drain systems
  • Also available with extended cover rail

The concept

Can be cut to length to minimum 1200 x 900 mm

*Note: the fittings are to be located in the shower area.

Matching seats & accessories

Suitable seats

RELAX-BA-SOLO

As an option, you can add to all systems matching seats made of hard foam support elements (e.g. RELAX-BA-SOLO)

We will be pleased to compile the appropriate mounting accessories for you. Please contact us!

Design cover rail: One channel – two designs

brushed stainless steel
can be tiled

The system offers two design options due to a reversible channel cover rail. One side has a brushed stainless steel surface, the other can be tiled to match the entire shower base.

By simply turning, the desired side faces upwards.

Height-adjustable for optimum adaptation to covering thickness

Separately provided adapters that can be cut as required enable height adjustability of the channel for surface covering thicknesses from 5 to 17 mm.

Firmly connected floor drain supports

no-img

The floor drain support is firmly fixed to the channel by means of a strong clip technique. This ensures a high degree of reliability with regard to leak tightness.

Drain system with high flow rate.
Drain performance [l/s] in accordance with DIN EN 1253 [l/s]

  • vertical (TUB-LINE-BA-S):
    0,8 l/s
  • horizontal (TUB-LINE-BA-W):
    0,8 l/s

Mounting accessories (KITs)

Complete set mounting accessories on offer for all sizes of flush with the floor shower bases.
