Flush with the floor shower bases with extended cover rail – TUB-LINE V / BOL V

Flush with the floor shower base in a rectangular format with single-sided gradient, can be shortened on three sides, with built-in and sealed channel drain.

LUX ELEMENTS®-TUB-LINE BOL V
Standard-compliant sealing for highly stressed areas according to DIN 18534, Part 6



no-img

TUB-LINE BOL V R1 1800/1000
Floor channel drain 650 mm with single-sided gradient, with extended tiling aid V and extended cover rail V over the channel support width 1000 mm



no-img

TUB-LINE BOL V R1 1800/1200
Floor channel drain 850 mm with single-sided gradient, with extended tiling aid V and extended cover rail V over the channel support width 1200 mm

TUB-LINE V Q1
floor channel drain, with one-sided gradient, with extended tiling aid V and extended cover rail V over the shower base width in brushed stainless steel

no-img

TUB-LINE V R1
floor channel drain (rectangular: on shorter side), with one-sided gradient, with extended tiling aid V and extended cover rail V over the shower base width in brushed stainless steel

See also:
TUB-LINE BOL, Floor channel drain
TUB-LINE V RT, Floor channel drains with extended cover rail

Design cover rail – TUB-LINE V / TUB-LINE BOL V

  • Shower base element with integrated and sealed floor channel drain
  • With extended cover rail (non-reversible) and extended tiling aid made of brushed stainless steel for continuous wall-to-wall channel look
  • Can be shortened to fit the shower area
  • Factory sealing
  • Prefabricated gradient (one-sided)
  • Shower base height: 30/45 mm
  • Height-adjustable for optimum adaptation to covering thickness
  • For barrier-free construction
  • Second drainage level
  • Matching substrate elements with a height of 55 mm
  • Secure click system for fastening the drain connection fitting



























Suitable floor drain system
(vertical and horizontal)

Stepless adaptation

no-img

TUB-LINE BOL V

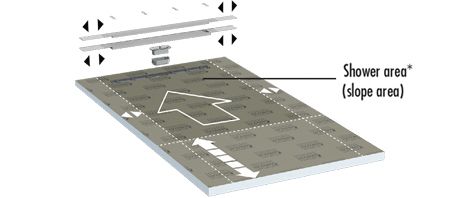

Can be shortened to fit the shower area

Can be shortened in length through area without gradient

  • for shower base width 800 – 1000 mm: up to 740 mm
  •  for shower base width 1200 mm: up to 940 mm

*Note: the fittings are to be located in the shower area.

TUB-LINE V
Can be shortened to fit the shower area

  • for shower base width 800 – 1000 mm: up to 740 mm
  •  for shower base width 1100 – 1200 mm: up to 940 mm

Matching bench

Passende Sitze

RELAX-BA-SOLO

As an option, you can add to all systems matching seats made of hard foam support elements (RELAX-BA-SOLO)

We will be pleased to compile the appropriate mounting accessories for you. Please contact us!

Substrate elements

Matching substrate elements with a height of 55 mm are offered in addition to the shower bases. These are either made to measure or universal, depending on the shower base model.

Height-adjustable for optimum adaptation to covering thickness

Separately provided adapters that can be cut as required enable height adjustability of the channel for surface covering thicknesses from 5 to 17 mm.

Firmly connected floor drain supports

no-img

The floor drain support is firmly fixed to the channel by means of a strong clip technique. This ensures a high degree of reliability with regard to leak tightness.

Drain system with high flow rate.
Drain performance [l/s] in accordance with DIN EN 1253 [l/s]

  • vertical (TUB-LINE-BA-S):
    0,8 l/s
  • horizontal (TUB-LINE-BA-W):
    0,8 l/s

Mounting accessories

Complete set mounting accessories on offer for all sizes of flush with the floor shower bases.

Product specifications
